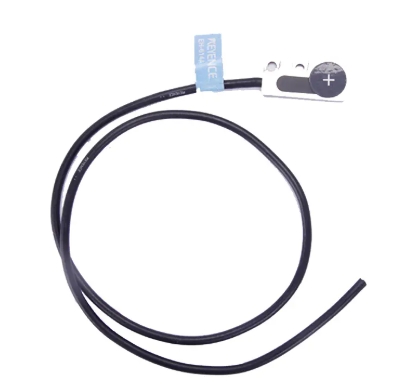

KEYENCE EH-614A Sensor Head, Shielded Type, Thin
Description
Manufacturer : Keyence
Product No. : EH-614A
Product Type : Sensor
Type : Standard , Shielded , ULTRA thin
Detectable object : Ferrous metals (see Characteristics for nonferrous metals)
Standard target (iron, t=1 mm) : 15 x 15 mm
Stable detecting range : 0 to 5 mm
Maximum detecting distance : 8 mm
Hysteresis : 0.05 mm
Repeatability : 0.005 mm
Temperature characteristics : ±10% max. of detecting distance at +23°C, within 10 to +60°C
Weight : 0.057 Kg
