EMERSON SCB-100A New and Original High quality

SCB-100A

SCB-100A is a high-performance shielded I/O junction box designed specifically for industrial data acquisition systems. Its core function is to achieve reliable connection between data acquisition devices and external signal sources through a 100 pin female SCSI interface and a 100 pin female screw terminal interface. This product adopts a multi-mode adaptive design with DIN rail, wall mounted and panel mounted, supporting seamless integration with testing and measurement equipment from NI and other manufacturers. Combined with shielded cables, it can build a low-noise signal transmission channel, effectively suppressing electromagnetic interference in industrial environments. Its mechanical housing integrates a magnetic detachable cover plate and pin distribution diagram, making it easy to maintain and debug quickly, and compatible with multiple installation scenarios. The product is designed with electrical isolation of 30V RMS/42V peak/60VDC, ensuring stable operation within a wide temperature range of 0 ° C to 70 ° C, and complying with RoHS directive and phthalate compliance standards. It combines safety and environmental protection, and is widely used in high reliability demand fields such as industrial automation and testing and measurement.

Technical specifcations for SCB-100A

Interface and Connection

Interface type:

Front end interface: 100 pin female SCSI interface, used to connect data acquisition devices.

Backend interface: 100 pin female screw terminal interface, used to connect external signal sources.

Installation method: Supports DIN rail installation, wall mounted installation, and panel installation to meet various installation needs.

2、 Shielding and noise suppression

Shielding function: Equipped with a shielded cable interface, effectively suppressing electromagnetic interference and ensuring the stability of signal transmission.

Signal protection: Provides sturdy, durable, and protected signal connections, suitable for signal transmission in industrial environments.

3、 Mechanical and Shell Characteristics

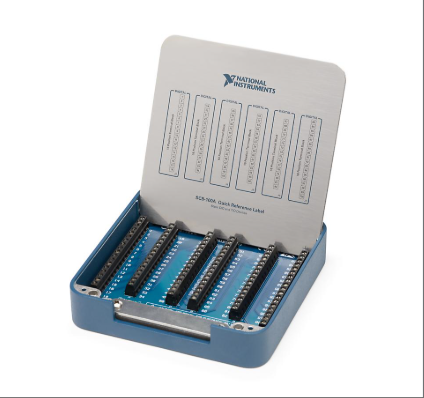

Shell design: The mechanical shell has a magnetic detachable cover plate, which facilitates quick maintenance and wiring.

Pin distribution diagram: The shell is equipped with a pin distribution diagram for easy wiring and debugging by users.

Size and weight:

Size: The specific size may vary slightly depending on the product version, but the design is generally compact and easy to integrate.

Weight: Approximately 0.82 kilograms (specific weight may vary depending on product configuration).

4、 Electrical specifications

Maximum voltage: 30V RMS, 42V peak, 60VDC, ensuring operation within a safe voltage range.

Applicable equipment: Suitable for testing and measuring equipment from manufacturers such as NI, achieving reliable connection with data acquisition equipment.

5、 Environmental adaptability

Working temperature range: 0 ° C to 70 ° C, suitable for a wide range of industrial environmental temperatures.

Storage and transportation temperature range: -25 ° C to 70 ° C, ensuring stability under extreme temperatures.

Humidity range: 5% to 95% (no condensation), suitable for high humidity environments.

6、 Compliance and Certification

RoHS compliance: Compliant with the RoHS directive, environmentally friendly and safe.

Phthalate compliance: Complies with phthalate compliance standards to ensure user health.

Our Services:

1、All our products are new and orginal, and of good quality

2、Our prices are very competitive.

3、 We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4、All inquiries will be valued and will reply in 24.

Packing & Delivery:

1、100% brand New and Original Factory Seal!

2、Warranty:1 year

3、Package: Original packing with cartons.

4、Delivery time: Shipped in 3-7 days after payment

5、All the goods will be tested before shipment
