GPIB-USB-HS+

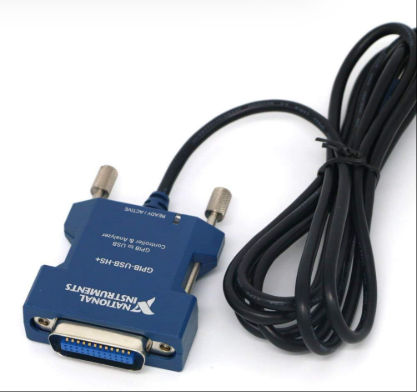

GPIB-US-HS+is a high-performance IEEE 488 controller and portable analyzer device designed specifically for industrial testing and instrument integration scenarios. The device is connected to a computer through a USB 2.0 interface, and the front-end adopts a 24 Pin public GPIB (IEEE 488) interface, which can support the highest IEEE 488.2 standard protocol, achieving high-speed and stable data transmission and device control. Its core advantage lies in the ability to connect up to 14 programmable instruments without the need for GPIB cables, significantly reducing wiring complexity and costs. The device is equipped with NI-488.2 driver software authorization, which ensures high compatibility and connection reliability with third-party GPIB instruments. It also integrates onboard analyzer functions, supports real-time monitoring of hardware status and fault diagnosis, and helps users quickly locate and solve system problems.
The product adopts a compact design and is compatible with most testing instrument sizes, suitable for space limited scenarios such as laboratories and production lines. Its application scope covers automation testing, instrument calibration, data acquisition and other fields, supporting efficient integration of instruments and computers through USB interfaces, especially suitable for testing environments that require multi device collaborative work. Compared to traditional GPIB solutions, GPIB-US-HS+can significantly shorten project development cycles and reduce maintenance costs by simplifying hardware connections, improving protocol compatibility, and enhancing analysis capabilities, making it a key tool for improving efficiency and reliability in the industrial testing field.
Technical specifcations for GPIB-USB-HS+
Interface and Protocol
Front end connection: 24 Pin public GPIB (IEEE 488) interface, compatible with IEEE 488.2 standard protocol.
USB interface: USB 2.0 standard Type A plug, supporting high-speed data transfer (480 Mb/s).
Protocol support: Supports HS488 protocol, with a data transmission rate of up to 7920 KB/s (up to 1830 KB/s in three wire mode).
2、 Performance parameters
Bus power supply: Powered through a USB bus, with a typical power consumption of 80 mA and a maximum of 200 mA (no additional power adapter required).
Multi device control: It can simultaneously control up to 14 GPIB programmable instruments without the need for GPIB cables, simplifying wiring.
Analyzer function: Built in onboard GPIB analyzer, supporting bus transaction monitoring, trigger capture, and data playback.
3、 Physical characteristics
Size: 8.0 cm (length) x 6.1 cm (width) x 2.0 cm (height), compact design suitable for most testing instruments.
Weight: 153 grams (including USB cable), lightweight design for easy portability and integration.
Installation method: Supports fixing with M3.5 × 0.6 threaded holes, with a maximum torque of 0.56 N · m (5.0 lb · in).
4、 Environmental adaptability
Working temperature: 0 ° C to 55 ° C (compliant with IEC 60068-2-1/2-2 standard).
Storage temperature: -20 ° C to 70 ° C (compliant with IEC 60068-2-1/2-2 standard).
Humidity range: working humidity 10% to 90% (non condensing), storage humidity 5% to 95% (non condensing).
Pollution level: Level 2, suitable for industrial environments.
5、 Software and Drivers
Driver support: Integrated NI-488.2 driver software license (version 14.0 or above), compatible with mainstream operating systems such as Windows and Linux.
Development tool: Provides GPIB Analyzer user manual and NI-488.2 help files, supporting bus transaction monitoring and debugging.
Protocol compatibility: Compatible with third-party GPIB instruments to ensure multi brand device collaboration.
6、 Safety and Electromagnetic Compatibility
Safety standards: comply with international safety regulations such as IEC 60950-1, EN 60950-1, UL 60950-1, etc.
Electromagnetic compatibility: meets standards such as EN 61326-1 (Class A), EN 55011 (Group 1, Class A), FCC 47 CFR Part 15B, etc.
