Siemens, as a globally leading automation technology company, enjoys a reputation in the field of industrial communication and control with its 6GK1 series of products.

Detailed Parameters of 6GK1503-2CB00

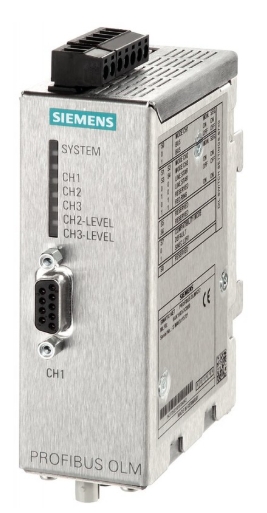

6GK1503-2CB00 is a key product in Siemens' PROFIBUS OLM (Optical Link Module) series. Below are its main technical parameters:

• Model: 6GK1503-2CB00
• Interface Type: With 1 RS-485 interface and 1 glass-plastic optical fiber interface (2 BFOC sockets)
• Transmission Rate: PROFIBUS data transmission rates range from 9.6 kbit/s to 12 Mbit/s, with PROFIBUS-PA reaching a transmission rate of 45.45 kbit/s
• Optical Fiber Type: Supports glass, PCF, and plastic FO cables
• Measurement Output: Equipped with signal contacts and measurement output for easy functional monitoring
• Power Supply: 24V power supply, supports redundant power configuration
• Network Topology: Supports linear, star, and ring network structures
• Application Range: Transmission distance can reach 15km via glass fiber optical cables

Features of the 6GK1 Series

• High Performance and Flexibility:

High-Speed Transmission: The 6GK1 series adopts the latest Ethernet technology to achieve high-speed data transmission, ensuring real-time communication between devices.

High Stability: After rigorous testing and validation, the 6GK1 series can operate stably for extended periods in harsh environments.

• Multiple Communication Functions:

Supports serial communication methods such as RS232, RS422, RS485, as well as various communication methods such as radio stations and telephone dialing.

Ethernet communication supports both wired and wireless connections, with drivers supporting mobile network standards such as GPRS, CDMA, and GSM.

• Powerful Development System:

Rich components and controls constitute a powerful HMI development system, addressing issues related to screen refresh speed and system operation efficiency.

Offers object-oriented programming, with built-in indirect variables, intermediate variables, database variables, supporting custom functions and menus.

• Openness:

Supports Excel VBA access to databases, adopts an open architecture, supporting multiple standards such as DDE, OPC, ODBC/SQL.

Provides external access interfaces, facilitating users to conduct secondary development using common development tools.

• Extensive Compatibility:

The 6GK1 series has strong compatibility with various industrial devices and can be widely used in scenarios such as automated production lines, robot control systems, and factory equipment monitoring.

Application Areas

With its excellent performance and extensive compatibility, the 6GK1 series has found wide application in the field of industrial automation:

• Automated Production Lines:

Enhances the efficiency and accuracy of production lines through high-speed, stable communication, reducing production costs.

• Robot Control Systems:

Achieves high-speed and precise operation of industrial robots, improving production efficiency and product accuracy.

• Factory Equipment Monitoring:

Provides comprehensive equipment status monitoring and fault alarm functions, helping enterprises achieve intelligent production management.

• Traffic Control Systems:

Achieves reliable communication and control in large-scale extended networks, such as in complex environments like road tunnels.

Product website：

https://www.3splc.com/6GK1503_c0_ss

In summary, Siemens' 6GK1 series of products demonstrates strong competitiveness in the field of industrial communication and control due to its high performance, flexibility, multiple communication functions, powerful development system, openness, and extensive compatibility. Whether it's automated production lines, robot control systems, factory equipment monitoring, or traffic control systems, the 6GK1 series can provide reliable solutions to help enterprises achieve intelligent production and management.
