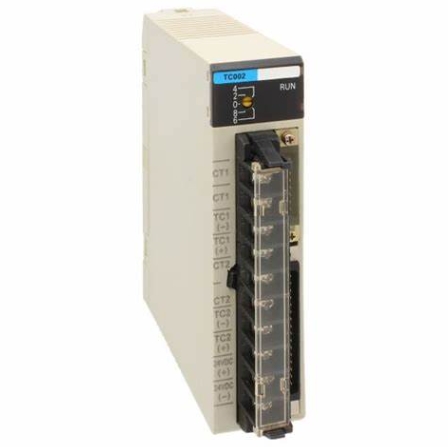

Omron C200H series PLC is an industrial automation control equipment with complete functions, stable performance, and compact structure.

Product Overview

The C200H series PLC is a small modular PLC launched by Omron, which has the characteristics of strong adaptability and flexible application. This series of PLCs provides fast instruction processing speed and has a high I/O density/volume ratio, making it widely used in various industrial automation scenarios.

Product Features

• I/O points and scalability:

When using an 8-point I/O unit, the number of I/O points can reach 240; When using 16 point units, it can reach 480 points.

Support multiple specifications of expansion racks, such as 3 slots, 5 slots, 8 slots, and 10 slots, to meet different application needs.

• Processing speed and storage capacity:

The processing speed of basic instructions is 0.75 μ s/piece, and the processing speed of complex instructions is 2.25 μ s/piece.

The instruction storage capacity is 6.6K words, and the data storage capacity is 1000 words (16 bits per word) of random access memory and 1000 words (16 bits per word) of read-only memory.

• Instruction System:

Composed of 145 instructions, including 12 basic instructions and 133 complex instructions.

Provides a rich instruction set to meet various complex control requirements.

• Programming methods:

Using ladder diagrams or mnemonics for programming makes it more intuitive and easy to understand.

Omron's programming software, such as Sysmac Studio, supports multiple programming languages, making it convenient for users to write and debug programs.

• Communication and Networking:

It can form a network with other C-series PLCs to achieve master-slave communication.

Support Host link communication protocol, facilitating communication and data exchange with the upper computer.

• Comprehensive I/O Systems:

Supports switch quantity, analog quantity, and pulse quantity input, as well as relay, transistor, thyristor, analog quantity, and pulse quantity output.

Support special I/O units, such as remote I/O units, multi-point I/O units, analog units, temperature units, position control units, high-speed counting units, voice units, and PID units.

• Power supply and anti-interference ability:

A power system with complete filtering and isolation capabilities.

Provided I/O signal isolation, conditioning, and protection system, improving the anti-interference ability of PLC.

Application area

The C200H series PLC is widely used in various industrial automation fields, such as process control, motion control, analog control, etc. Especially in applications that require high-speed and high-precision control, such as semiconductor manufacturing equipment, medical devices, packaging machinery, and precision positioning equipment, the C200H series PLC demonstrates excellent performance and stability.

Maintenance and remote communication

Omron provides various solutions for the maintenance and remote communication of C200H series PLCs. For example, by using an industrial intelligent gateway, PLC can achieve Ethernet Modbus communication, perform protocol parsing data collection, and upload data to the industrial cloud configuration platform for remote monitoring and maintenance. In addition, PLC programming software such as Sysmac Studio can be used for remote program upload and download, making it convenient for users to remotely manage and debug PLCs.

In summary, the Omron C200H series PLC has become a leader in the field of industrial automation due to its powerful functions, stable performance, and flexible applicability. Whether in small automation projects or large complex control systems, the C200H series PLC can demonstrate its excellent performance and reliability.
