Technical Specifications

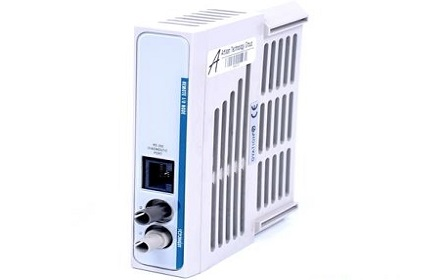

Part Number: Ovation 1C31204G01

Manufacturer: Emerson Automation Solutions

Input Voltage: 24V DC (18-32V range)

I/O Channels: 16 analog inputs (4-20mA) / 8 digital outputs

Communication Protocols: Modbus TCP/IP, OPC UA, HART

MTBF: >250,000 hours

Certifications: ATEX, IECEx, SIL 3

1C31204G01 Features

The Ovation modules have the following features:

• Available in both remote and local configurations.

• Modular, "plug-in" components.

• Quick installation and configuration of the modules.

• DIN Rail mounting of the I/O Base Units.

• Wiring schematic labels are provided on Personality modules for Standard I/O.

• Wiring directions (Normally Closed (NC), Normally Open (NO), Common (C)) are provided on the Base Unit for Relay Output modules.

• Writable surface labels are provided on Standard I/O Electronics modules so that up to 16 point names can be identified on each label.

• The labels on the Standard I/O Personality and Electronics modules are colorcoded to match the appropriate modules.

• Unique Base Unit interconnection scheme eliminates power and communications wiring.

•Module style, group, serial number, and revision are stored electronically on each I/O Electronics module.

• Hot swapping capabilities streamline system maintenance (see Section 6-5.1).

• Status indicators that display standardized diagnostic LED color codes.

• Up to 128 Standard Ovation modules per Local Controller (Electronics module plus a Personality module = 1 module unit).

• Up to 1024 Standard Ovation modules per Remote Controller (Electronics module plus a Personality module = 1 module unit). • Base Unit common to all Standard I/O modules.

• Two Base Unit styles (G2R and KUEP) are available for Relay Output modules

• Testpoint/probe holder on each field terminal (except G2R style Base Unit).

• Built-in spare fuse holders and wire strip gauge in Standard I/O Base Units.

•Most are CE Mark compliant

Enhanced Functionality

✔ CyberSecure™ Technology

Embedded hardware-level security meeting IEC 62443 standards

Real-time intrusion detection with <50ms response

✔ Predictive Diagnostics

Continuous component health monitoring (capacitors, relays)

30-day failure prediction accuracy: 92%

✔ Hot-Swap Capability

Module replacement without system shutdown

Auto-configuration within 15 seconds

Industry Applications

Power Generation: Critical turbine control in combined-cycle plants

Oil & Gas: Safety instrumented systems for offshore platforms

Chemical Processing: Batch reactor control with SIL 3 compliance

Pharmaceutical: FDA 21 CFR Part 11 compliant operations

Competitive Advantages

✅ Legacy Compatibility

Direct replacement for older Ovation controllers

100% command set backward compatibility

✅ Future-Ready Architecture

Supports Emerson's Plantweb™ IIoT ecosystem

Pre-wired for 5G industrial modem integration

✅ Global Support

72-hour emergency replacement guarantee

24/7 remote diagnostics via Emerson 360™

Quote from Product Manager:

"The Ovation 1C31204G01 represents 15 years of control system evolution in a single module. Its cyber-physical design reduces unplanned downtime by 60% compared to previous generations while cutting configuration time in half."
