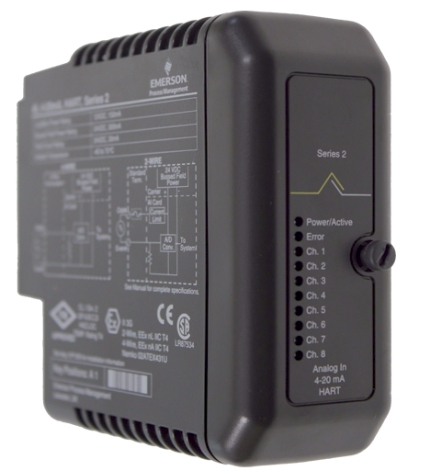

The Emerson KJ3222X1-BA1 series control module is a feature-rich, stable-performance industrial automation control device widely used in multiple industrial fields.

I.Data and Parameters

The main parameters of the Emerson KJ3222X1-BA1 control module are as follows:

• Input Voltage: 12-48VDC (some sources mention 24VDC)
• Output Voltage: 5VDC or 0~10VDC
• Maximum Output Current: 10A
• Efficiency: Greater than 90%
• Dimensions: 170mm x 105mm x 32mm
• Operating Temperature Range: -20°C to +50°C (some sources mention 0~60°C)
• Storage Temperature Range: -40°C to +70°C
• Ambient Humidity: 5% to 95% relative humidity
• Communication Method: RS485

Additionally, this module is equipped with a 32-bit RISC processor, features redundant power supply functionality, conforms to IEC 654-2 standards with a DC4 rating. Its operating temperature range complies with DIN 40040 standards, grade KTF, with storage and transportation environment requirements of -40~85°C.

II.Features

1. Multifunctionality: The KJ3222X1-BA1 control module can be used to receive and output signals, facilitating human-machine interaction with PLCs (Programmable Logic Controllers). Input devices may include barcode readers, potentiometers for analog input, while output devices may include printers, programmers, monitors, etc.
2. Integration with External Devices: As part of the PLC system, the integration of the KJ3222X1-BA1 control module with external devices is crucial, making external devices an integral part of the PLC system.
3. High-Sensitivity Analog Input: The KJ3222X1-BA1 analog input module is used to measure absolute vibration, featuring high sensitivity, easy installation, and a rugged enclosure suitable for industrial applications. It also has waterproof protection ratings of IP 55 and IP 65, with two frequency ranges: 10 Hz - 1000 Hz and 4 Hz - 1000 Hz.
4. Diagnostics and Safety: The KJ3222X1-BA1 module offers diagnostic functionality, indicating errors or warnings from devices, I/O devices, or I/O channels. Additionally, the module conforms to explosion-proof ratings of EEx ib II B / II C and can be used to connect safety barriers (zone 1).
5. Adaptation to Harsh Environments: This module tolerates vibration and impact, conforming to specific industrial standards. Its redundant power supply design and wide operating temperature range enable it to adapt to various harsh industrial environments, ensuring stable system operation.

III.Application Fields

The Emerson KJ3222X1-BA1 series control module is widely used in multiple industrial fields, including but not limited to:

1. Chemicals: Controlling parameters such as temperature, pressure, and flow in chemical processes to ensure the safety and stability of production processes.
2. Oil and Gas: Monitoring and regulating parameters such as pipeline flow and valve positions to ensure the normal operation of the oil and gas industry.
3. Power: Controlling generators, transformers, switchgear, etc., to ensure the stable operation of power systems.
4. Manufacturing: Used in automated production lines, robot control, product inspection, packaging, and other aspects to improve production efficiency.
5. Food and Beverage: Controlling parameters such as temperature, humidity, and flow to ensure product quality and safety.

Product website：

https://www.3splc.com/KJ3222X1-BA1_c0_ss

In summary, the Emerson KJ3222X1-BA1 series control module plays an important role in the field of industrial automation control due to its rich functionality, stable performance, and wide range of applications. Whether in the chemicals, oil and gas, power, manufacturing, or food and beverage industries, this control module provides reliable solutions to help enterprises achieve efficient and safe production.
