In today's highly automated industrial sector, DCS (Distributed Control System) plays a pivotal role. ABB's 800xA System stands out as a leader, earning widespread recognition for its powerful functionality, flexible configuration, and exceptional performance.

I. Data Parameters

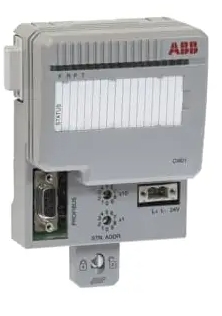

As a communication interface module in the S800 series, CI801 bears the responsibility of communicating with Profibus-DPV1 networks. Its main data parameters are as follows:

• Communication Standard: Supports the PROFIBUS-DPV1 communication standard.
• Supply Voltage: 24V (19.2~30V d.c.).
• Isolation Voltage Rating: 50V.
• Maximum Number of S800 I/O Stations: Can reach up to 99 stations in a standalone configuration; supports 62 stations in a redundant configuration (e.g., using CI840).
• Bus Scan Cycle: Depends on the type and number of I/O modules, but performance reference data for the CI801 module indicates that the system can accommodate various scales of I/O configurations.
• Number of I/O Modules within an S800 I/O Station: The number of I/O modules within each station cannot exceed 24, and the I/O bytes and user parameter bytes occupied by all I/O modules must comply with Profibus specifications.

II. Features

The S800 series, particularly the communication interface modules represented by CI801, demonstrates ABB's deep expertise and innovative spirit in the field of DCS. Its main features include:

1. High Integration and Modularity: S800 I/O products adopt a distributed, highly integrated, modular structure, making field device connection schemes simple and direct. Modules and terminal wiring units offer multiple combination methods, facilitating system expansion and maintenance.
2. Powerful Communication Capabilities: CI801 supports the Profibus-DPV1 communication standard, enabling seamless connection with various field devices for efficient data transmission and command control.
3. Redundancy Design: Although CI801 itself does not support redundancy functions, other modules in the S800 series (such as CI840) support redundant configurations, ensuring high system reliability and disturbance-free switching capabilities.
4. Easy Diagnosis and Maintenance: Each module and channel status indicator light facilitates error diagnosis, and remote diagnosis via the bus is supported, significantly reducing maintenance costs and time.
5. Wide Applicability: S800 series modules cover a range from low-cost, standard to high-end functionality, suitable for industrial automation applications of various sizes and complexities.

III. Applications

ABB's 800xA System and its S800 series have widespread applications in the field of industrial automation. Taking CI801 as an example, it can be widely used in the following scenarios:

1. Automotive Manufacturing: In complex automotive manufacturing environments, the 800xA system provides a unified control platform by integrating various subsystems. As a communication interface module, CI801 enables precise control and data acquisition for key equipment such as welding robots and spray painting equipment.
2. Petrochemical Industry: In the petrochemical industry, process control is crucial. CI801 can communicate with field instruments and equipment that support the Profibus protocol, achieving real-time process monitoring and control to ensure production safety and efficiency.
3. Power and Energy: In the power and energy sector, CI801 can work together with other S800 series modules to construct an efficient and reliable DCS system, enabling comprehensive monitoring and management of power generation, transmission, and distribution processes.

Product website:

https://www.3splc.com/CI801_c0_ss

In summary, ABB's 800xA System and its S800 series have become leaders in the field of industrial automation due to their exceptional performance, flexible configuration, and wide range of application scenarios. Especially the communication interface modules represented by CI801, with their powerful communication capabilities, ease of diagnosis and maintenance, play a pivotal role in various industrial automation applications. In the future, with the continuous development of Industry 4.0 and smart manufacturing, ABB's 800xA System and its S800 series will continue to lead technological innovation and progress in the field of industrial automation.
