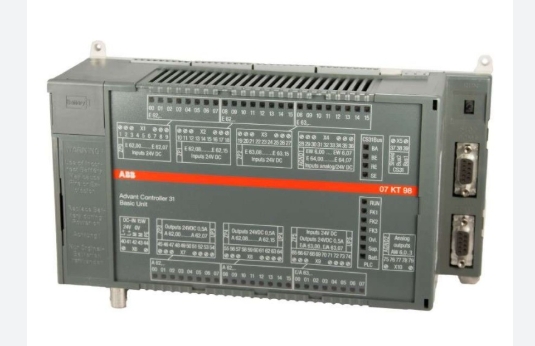

In the wave of industrial automation, ABB's 07KT98 series modules have emerged as core components in numerous industrial control systems, thanks to their exceptional performance and wide range of applications.

I. Parameters and Data

The ABB 07KT98 series modules encompass various models to cater to the needs of diverse industrial applications. Below are the parameters and data for some typical models:

07KT98 GJR5253100R4278 Analog Input Module:

• Multi-channel Input: Equipped with multiple analog signal input channels, capable of processing multiple analog signals simultaneously.
• High-precision Conversion: Built-in high-precision analog-to-digital converter (ADC) ensures accurate signal conversion.
• Broad Input Range: Supports various types of analog signal inputs, including voltage, current, and temperature.
• High Sampling Rate: Capable of real-time acquisition and processing of analog signals, ensuring rapid response to real-time changes in the system.
• Signal Filtering Function: Certain models feature signal filtering to effectively reduce noise interference.
• Communication Interfaces: Equipped with standard digital communication interfaces such as Ethernet and serial ports.

07KT98 GJR5253100R0278 Digital Input/Output Module:

• Analog Input: 8 channels, supporting input ranges such as 0+5V, -5+5V, 0+10V, -10+10V, 0...20mA, 4...20mA, and PT100 (2-wire or 3-wire).
• Analog Output: 4 channels, with output ranges of -10+10V and 0...20mA.
• Digital I/O: Large numbers of inputs and outputs, totaling 1040 each.
• Communication Interfaces: Supports fieldbus interfaces such as Ethernet TCP/IP and CANopen master.
• Memory: Both user data and user program memory are 1000kB, using storage types like flash EPROM and non-volatile RAM.

II. Features

The ABB 07KT98 series modules stand out in industrial control systems due to their unique features:

1. High Precision and Stability: Employs high-precision analog circuits and sophisticated signal processing techniques to ensure accurate and stable signal conversion.
2. Multi-channel and Flexibility: Provides multiple input/output channels, allowing for flexible configuration and expansion based on actual needs.
3. Fast Response: Features high sampling rates and data processing speeds, enabling real-time response to system changes.
4. High Reliability: Utilizes high-quality components and precision manufacturing processes to ensure stable operation under long-term, high-load conditions. Additionally, it integrates various protective measures, such as overcurrent, overvoltage, and overheating, to effectively prevent equipment damage.
5. Excellent Compatibility: Supports multiple communication protocols and interface standards, facilitating integration and connection with other devices and systems.

III. Applications

The ABB 07KT98 series modules are widely used in various industrial control and monitoring scenarios, including but not limited to:

1. Production Line Automation: In manufacturing, the 07KT98 series modules can be used for production line monitoring, equipment status detection, etc., improving production efficiency and quality.
2. Robot Control: In robot systems, this series of modules can receive and process signals from sensors, enabling precise control and motion planning of robots.
3. Building Automation: In building automation systems, the 07KT98 series modules can be used for environmental monitoring, energy management, etc., enhancing building comfort and energy efficiency.
4. Environmental Monitoring: In the field of environmental monitoring, this series of modules can be used for real-time monitoring and data acquisition of parameters such as temperature, humidity, and pressure.

Product website:

https://www.3splc.com/07KT98_c0_ss

In conclusion, with their exceptional performance and wide range of applications, the ABB 07KT98 series modules have become indispensable core components in industrial automation and control systems. Whether in manufacturing, the energy industry, or other industrial fields requiring precise control, they play a crucial role in enhancing system performance and reliability.
