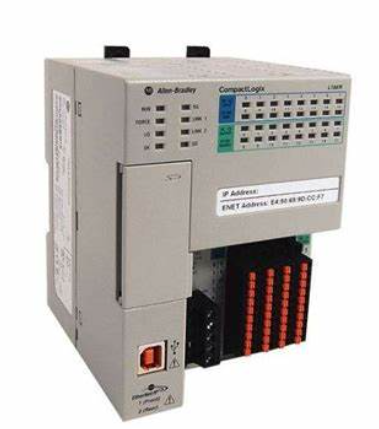

Allen-Bradley 1769-L19ER-BB1B CompactLogix 5370 Programmable Automation Controller (PAC) series.
Description For 1769-L19ER-BB1B
The Allen-Bradley 1769-L19ER-BB1B is a CompactLogix 5370 Programmable Automation Controller (PAC) series. This controller features dual Ethernet interfaces functioning as a built-in ethernet switch supporting linear and redundant Ethernet I/P topology. This series of controllers have 1 MB user memory, that is shipped with a 1784-SD1 memory card. It has 1 USB communication port and supports handling up to 32 controller tasks with 100 programs for each task. This controller comes with embedded 16 24 VDC discrete inputs and 16 24VDC Discrete outputs and supports installation of up to Six (6) 1734 POINT I/O expansion I/O modules.
he 1769-L19ER-BB1B is a CompactLogix 5370 L1 Programmable Automation Controller (PAC) from Allen-Bradley. This controller has a compact and slightly scalable properties and supports direct panel or DIN rail mounting. The 1769-L19ER-BB1B is capable of executing a maximum of 32 continuous or periodic tasks with each task may be assigned up to 100 programs. It is provided with Sixteen (16) Discrete input channels and Sixteen (16) Discrete output channels as embedded channels and supports installation of optional local I/O modules using the 1734 Point I/O modules. Up to Eight (8) Point I/O modules is supported by the 1769-L19ER-BB1B. The embedded user memory installed to this controller is 1MB with non-volatile memory amounting to 1GB which can be upgraded to 2GB non-volatile memory. The built-in communication ports are Ethernet I/P and USB interfaces. The Ethernet ports support Linear, traditional star and Device Level Ring (DLR) topology. Supported transmission rate by the Ethernet ports are 10/100 Mbps with auto-negotiation function while the USB port supports 12 Mbps communication speed. It features dual Ethernet ports and comes with an integrated switch that allows support for traditional star, linear, and DLR (Device Level Ring) topologies. DLR capability enhances network resiliency where individual parts can be replaced without compromising production. The 1769-L19ER-BB1B Controller has one USB port, supports local expansion modules, and allows the use of an SD (Secure Digital) card for nonvolatile memory. It uses a POINT I/O (1734) backplane and can accommodate up to 8 I/O expansions. The 1769-L19ER-BB1B’s embedded I/O DC digital modules consist of 16 inputs and 16 outputs. It features a maximum capacity of 8 Ethernet nodes and a user memory of 1 MB. This controller ships with a 1GB 1784-SD1 card but can support a 2GB SD card (1784-SD2). The 1769-L19ER-BB1B DIN Rail Mount PAC has a 24V DC input, isolated embedded power supply with 10-28.8V DC operating voltage range. Its power terminal accepts 1 or 2 wires size 0.051-3.31 mm2 (30 and 12 AWG) with solid or stranded copper wire rated at 75 °C (167 °F) or greater and 1.2 mm (3/64 in.) insulation. Its minimum line requirement (VDC) is 30VA.
Allen Bradley's 1768-PB3 is a CompactLogix power supply. The 1768-PB3 is powered through the CompactLogix backplane. By using this backplane, the 1768-PB3 power supply is compatible with the 1768 and 1769 controllers, input/output modules, and power supply
Product specification
Model Number:1769-L19ER-BB1B
Product name:1769-L19ER-BB1B
Payment :Paypal\TT\Western Union\ Trade Assurance
MOQ :1PCS
Package :Carton Package
Shipping By DHL\UPS\Fedex\EMS\TNT\Aramex
Service :24 Hours Online Service
Lead time :5-7 Days
Condition :100% Original
Original factory:Allen-Bradley1769-L19ER-BB1BIn stock best price
| Shipping term: TNT DHL FEDEX UPS |
| Warranty: 12 Months |
| Condition: Original & new |
Our Main Products
Rockwell:Allen-Bradley1769-L19ER-BB1B
1) ControlLogix 1756 series controller
2) CompactLogix 1769 series controller
3) SLC 500 1747 1746 Series Controller
4) PLC-5 1771 1785 series controller
5) ProSoft MVI69/PS69/MVI56/MV194/MV171/MV146/3150
6) ICS TRIPLEX trusted system
FAQ For ：Allen-Bradley1769-L19ER-BB1B
· Q:Do you provide warranty for the goods?
· A:Yes, we provide one year warranty for all the goods from us.
· Q: Could you provide technology support?
· A: We're in this field more than 15 years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.
· Q: Does Online Union keeps goods in stock or only trading?
· A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.
Packing & Delivery
1)100% brand New and Original Factory Seal!
2)Warranty: 1 year
3)Package: Original packing with cartons.
4)Delivery time: Shipped in 3-7 days after payment
5) All the goods will be tested before shipment.
Our Services
1、 All our products are new and original, and of good quality.
2、 Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.
4、 All inquiries will be valued and will reply in 24 hours.
5、 Fast shipping, and good after-sale service
6、 We will ship the items within 1-3 working days after the payment is received.
7、 Good package to protect the products.
