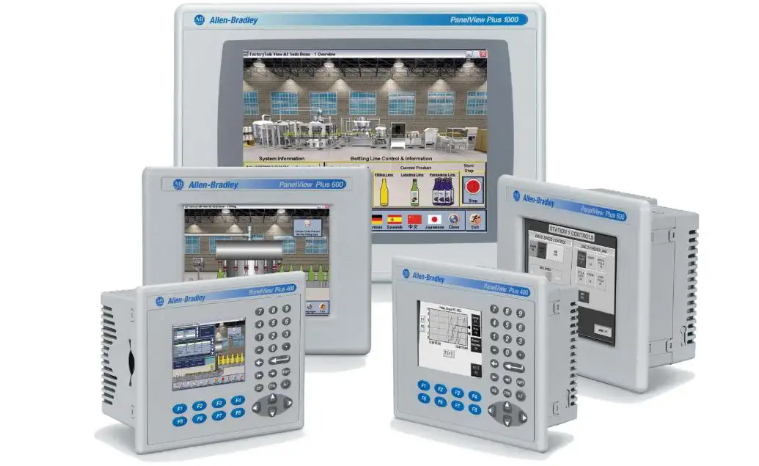

AB Rockwell - Touch Screen - 2711P Series

The PanelViewPlus 7StandardE terminal is an operator interface device. They are used to monitor the devices connected to ControlLogix (5570 and CompactLogix 5370 controllers in EEtherNet/IP network. Their animated graphics and text display are convenient for the operator to view the working state of the machine or process. The operator interacts with the control system through touch screen input.

PanelViewPlus 7Standard terminal has the following features:

・ The terminal function allows connection to 1 controller, providing up to 25 images and 200 alarms.

・ FactoryTalkViewMachineEditions software provides a familiar environment for creating HMI applications.

・ Based on Windows CE operating system, you can configure and run third-party applications through face access.

・ Ethernet communication supporting linear and star network topology.

・ The PDF file stored on the terminal can be accessed through the PDF reader.

・ Provide more screen options, including 4 inch, 6 inch, 7 inch, 9 inch, 10 inch, 12 inch and 15 inch terminals.

・ The 4-inch, 9-inch and 12-inch terminals adopt wide screens.

・ Larger screen resolution.

・ Certification includes Class 1, Division 2 and ATEX2 and Division 22

PanelView Plus 7Standard Terminal Touch Screen

2711P-T4W21D8S、2711P-T6C21D8S、2711P-T7C21D8S、2711P-T9W21D8S、2711P-T10C21D8S、2711P-T12W21D8S、 2711P-T15C21D8S

Protective Film

2711P-RGT4S, 2711P-RGT6S, 2711P-RGT7SP, 2711P-RGT9SP, 2711P-RGT10SP, 2711P-RGT12SP, 2711P-RGT15SP

Power Supply and Power Terminal Block

1606-XLP95E, 1606-XLP100E, 2711P-RACDIN, 2711P-RIBDSP

Installation hardware

2711P-RMCS

SD card

1784-SD1, 1784-SD2, 2711C-RCSD, 2711P-RCKS

USB Programming Cable

6189V-USBCBL2

Spare Battery

2711P-RY2032、2711P-RYKS
