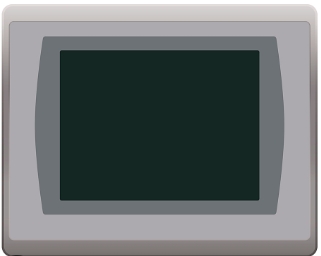

Allen Bradley 2711P-T7C22D9P PanelView Plus 7 Graphic Terminal Brand new

Allen Bradley 2711P-T7C22D9P PanelView Plus 7 Graphic Terminal

The Allen-Bradley 2711P-T7C22D9P is an Allen-Bradley PanelView Plus 7 Performance Operator Terminal. This operator terminal is powered by an external 18-30VDC supply voltage and has a 6.5-inch colored display with embedded Two (2) Ethernet and Two (3) USB communication ports. This operator terminal has a touchscreen input interface.

Technical specifications for 2711P-T7C22D9P

Manufacturer：Rockwell Automation

Display Size：6.5 inches

Part Number/Catalog No.：2711P-T7C22D9P

Product Type：PanelView Plus 7 10-inch Performance Terminals

Brand：Allen-Bradley

Product Family：PanelView Plus 7 Performance Graphic Terminals

Operator Input:：Touch

Touch screen：Analog resistive touchscreen

Actuation rating：1 million presses

Operating force：100 grams

Display Type：Color Active Matrix TFT LCD

Display Area：132 x 99 mm (5.2 x 3.9)

Resolution：640 x 480 SVGA, 18-Bit

Backlight：CCFL 50,000 hours life, minimum

Application memory：512 MB RAM and 512 MB storage; User memory 80 MB

Communication ports：(3) USB; (1) RS232; (1) Ethernet

Input Voltage range：18-30VDC

Product Line：Panelview Plus 7

Input Type：Touchscreen

Display Color：Color

Memory：512 MB

Input Voltage：24 Volts DC

Backlight：LED

Weight：2.65 pounds

Power Consumption：50 Watts

Description:

The Allen-Bradley 2711P-T7C22D9P is a powerful graphics terminal that is a part of the PanelView Plus 7 product line. It has a touchscreen input with a 6.5-inch display size. The 2711P-T7C22D9P also comes with a TFT color display and Touch input. Accompanied by an efficient SD card, this graphic terminal quickly copies and restores the operator interface. It has a LED backlight and an input voltage requirement of 24 Volts DC. Though the backlight is not changeable, its lifespan reaches up to 50,000 hours minimum at 40 degrees Celsius (104 degrees Fahrenheit) and 50% brightness. The touchscreen display for 2711P-T7C22D9P is analog resistive.

The 2711P-T7C22D9P is a 6.5-inch, Colored Thin Film Transistor (TFT) screen. With this screen size, this performance terminal is ideally used for simple and small applications as it only has a viewing area of 132 x 99 mm or 5.2 x 3.9 inches and display resolution of 640 x 480 SVGA, 18-Bit and supports. It supports 18-bit color graphics, allowing it to display static and dynamic graphics with color coded design.

Being a performance terminal, the 2711P-T7C22D9P is equipped with Two (2) Ethernet interfaces, supporting Linear, Device Level Ring (DLR) and Star topologies. This is primarily used to communicate and integrate data residing in automation devices’ memory. This performance terminal is compatible for communicating with Allen-Bradley Logix controllers as well as the older controllers such as SLC500 and MicroLogix. These ports may also be used to integrate the HMI as part of plant-level and enterprise automation component. It supports 10/100 Mbps transmission speed with auto-negotiation capability and may be extended using a repeater device or a media converter device.
