Allen Bradley 2711P-T12C6B2 PowerFlex
The 2711P-T12C6B2 terminal is an operator interface terminal that has been designed and manufactured by Allen-Bradley/Rockwell Automation. It is part of the Allen-Bradley Panelview Plus 1250 series of interface terminals. The 2711P-T12C6B2 operator interface terminal can be powered by 85 to 264 Volts AC or 18 to 32 Volts DC input voltage. It can be controlled through its 12.1-inch touchscreen which the users can operate with plastic styluses or with their fingertips.
Technical specifications for 2711P-T12C6B2
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711P-T12C6B2
Product LinePanelview Plus 1250
Display Size12.1 inches
Input TypeTouchscreen
Display TypeFull Color
CommunicationDH+/RIO/DH-485
Input Power85-264 Volts AC and 18-32 Volts DC
Memory128 Megabytes
Shipping Dimensions11.12 x 14.3 x 2.17 inches
Product Lifecycle Status*Discontinued/Obsolete
Description

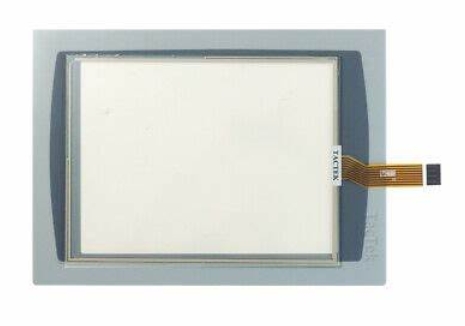

The Allen-Bradley 2711P-T12C6B2 is a PanelView Plus 1250 configured terminal with a 12.1-inch analog resistive touchscreen display and a 128 MB power logic module available. This display is an 18-bit active matrix thin film transistor (TFT) type that has a 9.7 x 7.2 inches total display area and an 800 x 600 resolution. The 2711P-T12C6B2 is also equipped with a backlight that is field replaceable and has a luminance of 300 Nits and an average life of 50,000 hours. To timestamp critical data, it is equipped with a real-time clock that is battery-backed and it is also equipped with a CompactFlash slot and 1 USB port each for the mouse and keyboard. Available memory on the 2711P-T12C6B2 terminal is 128 MB each for the internal storage and the RAM and it also comes with RIO/DH+/DH-485 communication options.
