Allen Bradley 2711P-B7C22D9P PanelView Plus 7 Graphic Terminal Brand new

Allen Bradley 2711P-B7C22D9P PanelView Plus 7 Graphic Terminal

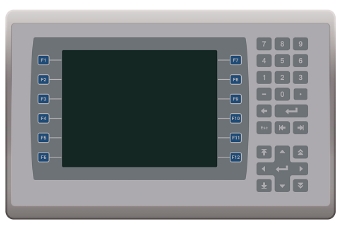

The Allen-Bradley 2711P-B15C22D9P is a PanelView Plus 7 Performance operator terminal. This Human Machine Interface (HMI) device is powered by an external supply voltage of 18-32VDC. It has a 6.5-inch Color active matrix, thin-film transistor (TFT) LCD screen with embedded Touchscreen and keypad operator interfaces. It has a variety of communication ports such as, Two (2) Ethernet and Three (3) USB ports.

Technical specifications for 2711P-B7C22D9P

Brand：Allen-Bradley

Display Size：6.5 inches.

Part Number/Catalog No.：2711P-B7C22D9P

Manufacturer：Rockwell Automation / Allen-Bradley

Product Family：PanelView Plus 7 Performance terminals

Operator Input：Touch / Keypad

Display Type：Color active-matrix TFT

Display Area：304 x 228 mm (12.0 x 9.0 in.)

Resolution：640 x 480 VGA, 18-bit color graphics

Touch：Analog resistive Actuation: 1 million presses; operating force: 100 g

System Memory：1GB RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory)

Communication ports：Two (2) Ethernet, Three (3) USB host

Input Voltage range：18-30 VDC

Power Consumption：50 W max (2.1 A at 24V DC)

Backlight：White light-emitting diode, solid state Life：50,000 h min at 40 °C (104 °F) to half-brightness, backlight is not replaceable

Product Line：Panelview Plus 7

Input Type：Touchscreen/Keypad

Display Color：Color

Memory：512 Mb

Input Voltage：24 VDC

Backlight：LED

Weight：3.25 LBS

Description:

The Allen-Bradley 2711P-B7C22D9P is a Human Machine Interface (HMI) device from the 2711P PanelView Plus 7 Performance graphic terminals. This HMI device is designed for installation to a variety of industrial applications and offers modern connectivity and productivity features that meets demand of today’s machine and process automation requirements.

The 2711P-B7C22D9P mainly features a 6.5-inch colored display screen with resolution of 640 x 480 VGA, 18-bit color graphics and effective viewing area of 132 x 99 mm (5.2 x 3.9 in.). Process control is introduced to the via the embedded analog resistive touchscreen and keypad input interfaces. It is powered by a supply voltage range of 18-32VDC with maximum power consumption of 50 Watts.

The 2711P-B7C22D9P is installed with a battery backed real-time clock with accuracy of ±2 minutes per month with minimum battery life of 4 years at 25 °C (77 °F). This battery may be replaced with an equivalent CR2032 lithium coin cell.

It has a built-in system memory of 1GB Random Access Memory (RAM) and 512 MB for file storage. It has a non-volatile user memory amounting to 80 MB where other HMI files may be stored. Internal memory may be expanded with the use of Allen-Bradley 1784-SDx and 1784-SDHCx cards or external flash drives installed to any of the Three (3) USB ports.
