Allen-Bradley 2711c-k3m Operator Interface Panelview

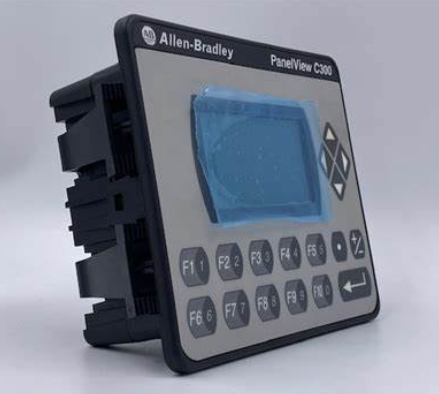

The Allen-Bradley 2711C-K3M is a PanelView C300 Component Terminal. This operator terminal features a Monochrome transflective FSTN passive matrix screen, with diagonal size of 3-inches, Display area of 67 x 33 mm (2.64 x 1.30 in.) and resolution of 128 x 64 pixels. It is operated via the Keypad assembly and comes with built-in RS-232 (DH-485), RS-232 (DF1), RS-485 and Ethernet interfaces.

The 2711C-K3M operator interface comes with a 3-inch display with embedded touch membrane. It has a built-in web browser allowing remote access through Ethernet connection using an emulator address. This operator terminal is installed using mounting and quick-lever clamps which makes the maintenance and installation process easy and convenient. It also has a backup available for at least 5 years and no real-time clock, the terminal is valuable when viewing the results on the terminal during large applications.

The 2711C-K3M uses 24 Volts DC input voltage. For device safety, give the terminal connections regular maintenance. Version 2. The operator input has 10 functional keys which are keys F1 to F10, a numeric keypad with keys from 0 to 9, and up, down, left, right, decimal, +/-, and Enter keys with a USB port as a programming port. The users can view the system information and apply login passwords for secure operations. With a screen resolution of 128 by 64 pixels, it comes with a built-in analog touchscreen. Weighing less than 0.43 pounds with a display size of 67 by 33 millimeters (2.64 by 1.30 inches), the PanelView Component C300 Terminal has a backlight life of more than 50,000 hours. The files can be transferred through the PanelView Component terminal storage and a USB flash drive or a computer.

The 2711C-K3M PanelView Component is especially designed to communicate with MicroLogix, SLC, and Micro800 controllers by Allen-Bradley as well as PowerFlex 4 drives via the integrated communication ports such as RS-232 that supports DH-485 protocol, RS-232 supporting DF1 communication, and RS-485 Multi-vendor communication for Modbus and Siemens MPI devices. This HMI device is also equipped with ports, allowing insertion of external peripherals including keyboard, mouse, and removable storage.
