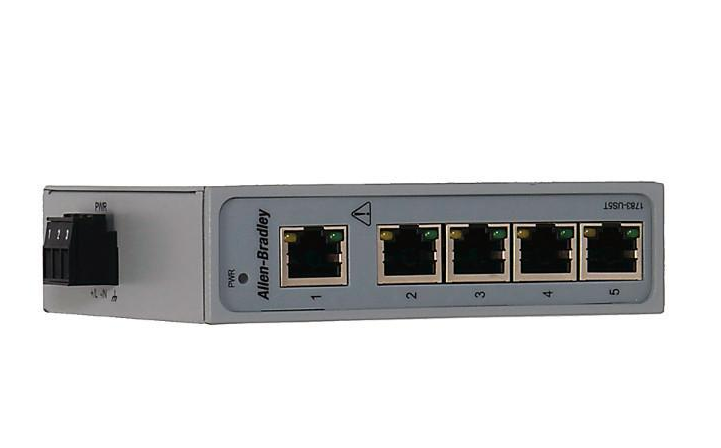

Allen-Bradley 1783-US5T unmanaged Ethernet switch

Allen-Bradley 1783-US5T unmanaged Ethernet switch

Description For 1783-US5T

The 1783-US5T is an industrial Ethernet switch from Allen-Bradley. This product is part of the Stratix 2000 unmanaged ethernet switch catalog featuring Five (5) Fast Ethernet copper ports supporting 10/100 Mbps transmission speed. This Ethernet switch is powered by an external 24 VDC / 24 VAC supply voltage with a power consumption of 3.4 Watts. This content was written and compiled by DO Supply and should not be copied.

This industrial grade Ethernet switch by Allen Bradley, 1783-US5T, is one member of a series of switches designed to increase network flexibility and performance, as well as to diminish or completely reduce the risk of excessive network traffic. This unmanaged switch has a total of five (5) ports, all of which are classified as fast RJ45 Ethernet ports. Operating most efficiently in a temperature range of 0 to 60 degrees Celsius, this unit’s compact design maximizes storage space with its 4.51 x 3.02 x 1.17 inch (114.5 x 76.8 x 29.6 millimeter) dimensions and Open-Style enclosure type. The 1783-US5T has an average voltage input of 24 Volts AC/DC, but it accepts input voltage ranges of 18 to 30 Volts AC and 18 to 60 Volts DC. Its power consumption peaks at 3.4 Watts, with a nominal current of 180 mA DC and 360 mA AC, and a maximum current of 380 mA DC and 750 mA AC. The 783-US5T reduces the networking time and traffic by using a protection system and reduces time in a harsh environment by adding and using power inputs. This unit’s ground connection wire must be no larger than 2.5 square millimeters (14 AWG), must be made of copper wire, and must be able to withstand temperature ranges up to 187 degrees Fahrenheit (86 degrees Celsius). Its DC Power wire must be 4 x 0.25 square millimeters (12 x 24 AWG), made of twisted-pair copper, and must also be suitable for temperatures as high as 187 degrees Fahrenheit (86 degrees Celsius). Its power terminal screw has a torque of 4.5x50 inches -pounds, and its maximum ground terminal screw has an 8.05 inch-pound torque.

Product specification

Place of Origin： Original

Model Number: 1783-US5T

Condition ：100% Original

Product name :Original AB PLC

Shipping term: TNT DHL FEDEX EMS UPS

Type ：1783-US5T

Original factory:Allen-Bradley 1783-US5T In stock best price
