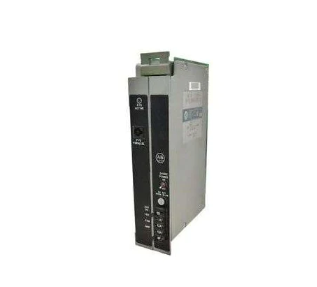

The 1771-P5E Power Supply Module by Allen-Bradley is a double slot, chassis-based power supply module with 20.5-30V DC input voltage and a selectable power loss delay feature and it provides the 1771 Chassis with 5V DC power. The module has 24V DC nominal input voltage and supplies an output voltage of 5.06V DC with an output current of 8A (max). It has an input power of 57W and dissipates 4W at 2A, 7W at 4A, 12W at 6A, and 17W at 7A. The 1771-P5E is uniquely designed to connect with another in parallel for a greater chassis current and must not be connected in parallel with any other power supply module. It provides circuit protection via the 5A, 32V DC Normal Bow fuse, and can also provide branch circuit protection at 15A maximum.
Catalog Numbers : 1747-L542,1747-L543,1747-L551,1747-L552,1747-L553,1756-M03SE,1756-M08SE,1756-M16SE,1756-M08SEG,11756-M02AE,1756-M02AS,1756-HYD02,1756-M16SE,1756-M08SE,1756-M03SE,1756-M02AS,1756-HYD02,1756-M02AE,1756-M08SEG,1756-IA8D,1756-IA16,1756-IA16I,1756-IA32,1756-IB16,1756-IB16D,1756-IB16I,1756-IB16IF,1756-IB32,1756-IC16, 1756-IG16, 1756-IH16I, 1756-IM16I, 1756-IN16,1756-IV16,1756-IV32,1756-OA8,1756-OA8D,1756-OA8E,1756-OA16,1756-OA16I,1756-OB8,1756-OB8EI,756-OB8I,1756-OB16D,1756-OB16E,1756-OB16I,
Specification:,
Brand: Allen Bradley
Product Origin: USA
Warranty: 1 Year
Payment: T/T, Western Union
Condition: New with original package
Lead Time: 1-3days
Model: 1771-P5E
