Allen Bradley 1771-IAD Input Module

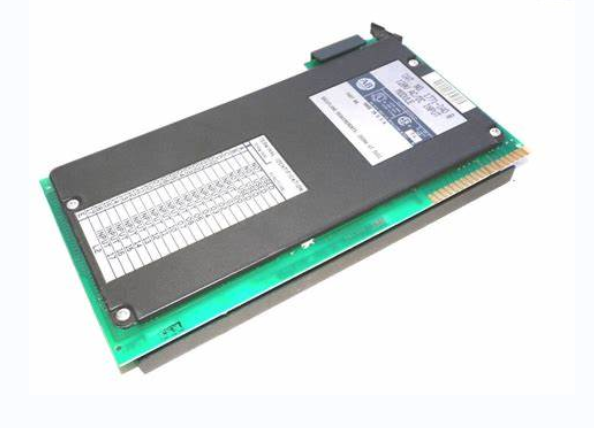

Allen-Bradley 1771-IAD discrete input module

Item no.:
1771-IAD
Payment:
T/T,Western Union
Market price:
$66
Product origin:
USA
Color:
New and original
Goods stock:
30
Lead Time:
In stock

Inquiry now

product introduction

Allen-Bradley 1771-IAD discrete input module

Description For 1771-IAD

The Allen-Bradley 1771-IAD is a discrete input module. This module is part of the 1771 product bulletin. It features Sixteen (16) input channels compatible for 120VAC / 125VDC input voltage. It is compatible for installation in 1771-A1B, A2B, A3B, A3B1, A4B, 1771-AM1 and AM2 chassis.

The 1771-IAD has an input signal delay such as 120V ac/60Hz: 5ms (+3ms) or 20ms(+5ms) selectable 120V dc: 3ms (+0.1ms) or 10ms (+1ms) selectable for Off to On transition and 25ms (+5ms) for 120V ac or dc for ON to OFF transition. It has an On state voltage range of 79 VAC to 138VAC or VDC. It has a maximum power dissipation of 8.8 Watts and minimum of 1.0 Watts with Thermal dissipation 30.1 BTU/hr, maximum and 3.42 BTU/hr, minimum. It has a backplane Current draw of 195 mA at 5V.

The 1771-IAD has uses a field wiring arm of 1771-WH. This field wiring arm is comparable to removable terminal blocks, which is used for modular wiring and simplified installation and maintenance of the input module. When installing the 1771-IAD to any of the compatible chassis, it requires keying position between 10 and 12 or between 14 and 16.

The Allen-Bradley 1771-IAD is a PLC 5 Digital AC/DC Input Module. It contains information of various input devices such as pushbuttons, limit switches, pilot lights, motor starters, and annunciators to interface with on/off sensors and actuators. It provides a modular design with space-saving and pocket-friendly means to add input to a PLC control system. It comes with a 1771-WH wiring arm to replace the module, eliminating the need to disconnect the wiring. It is a series D module and supports ½, 1, and 2-slot I/O addressing.

The 1771-IAD module has 16 inputs with a 120V AC/DC voltage category. It has an operating voltage range of 79 - 138V AC or 79 - 138V DC. It has a typical signal delay of 5ms (+/-3) at on AC state, 3ms (+/-0.1) or 10ms (+/-1) at on DC state, and 25ms (+/-5) at off AC/DC state. It has a maximum Off-state current of 3mA for AC and 0.8mA for DC and a backplane current load of 195mA. It has a maximum power dissipation of 8.8W and a thermal dissipation of 30.1 BTU/hr. It is installed in a 1771 I/O chassis containing a PLC processor. Keying bands for putting it in the right slot are between pins 14 and 16 for the upper connector and between pins 10 and 12 for the lower connector.

Allen Bradley's 1768-PB3 is a CompactLogix power supply. The 1768-PB3 is powered through the CompactLogix backplane. By using this backplane, the 1768-PB3 power supply is compatible with the 1768 and 1769 controllers, input/output modules, and power supply

Product specification

Model Number: 1771-IAD

Product name: 1771-IAD

Payment :Paypal\TT\Western Union\ Trade Assurance

MOQ :1PCS

Package :Carton Package

Shipping By DHL\UPS\Fedex\EMS\TNT\Aramex

Service :24 Hours Online Service

Lead time :5-7 Days

Condition :100% Original

Original factory:Allen-Bradley 1771-IAD In stock best price

Shipping term: TNT DHL FEDEX UPS

Warranty: 12 Months

Condition: Original & new
