Allen Bradley 1756-PB75 ControlLogix 24V DC Power Supply Brand new

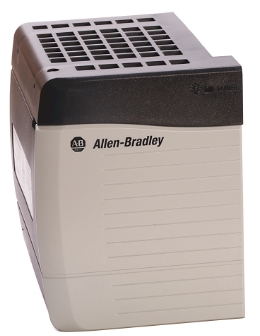

Allen Bradley 1756-PB75 ControlLogix 24V DC Power Supply

The Allen-Bradley 1756-PB75 is a ControlLogix Power Supply. This is a Standard Power Supply that is externally powered by an input Voltage range of 18-32VDC with nominal input voltage of 24VDC. It has an output power rating of 75 W @ 0…+60 °C (+32…+140 °F) and current capacity of 1.5 A at 1.2VDC; 4A at 3.3VDC; 13 A at 5.1VDC and 2.8 A at 24VDC. This module is installed at the left most side of the 1756 chassis.

Technical specifications for 1756-PB75

Manufacturer：Rockwell Automation

Dimensions：14.0 x 11.2 x 14.5 cm (5.51 x 4.41 x 5.71 in.)

Weight：0.95 kg (2.10 lb)

Location：1756 Chassis Left Side

Input Power：95 W

Module Type：Standard Power Supply

Series：ControlLogix

Part Number/Catalog No.：1756-PB75

Brand：Allen-Bradley

Nom Input Voltage：24VDC

Input Voltage Range：18-32VDC

Isolation Voltage：250V (continuous), Reinforced Insulation Type, Power Input to Backplane Type tested @ 3500V DC for 60 s

Max Inrush Current：30 Amperes

Current Capacity：1.5A at 1.2 VDC; 4A at 3.3VDC; 13 A at 5.1VDC and 2.8 A at 24VDC

Output Power：75 W @ 0…+60 °C (+32…+140 °F)

Hold Up time：35 ms @ 18V DC; 40 ms @ 24V DC; 40 ms @ 32V DC

Chassis Compatibility：1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17

Chassis Series：Series B; Series C

Input Voltage：24 Volts DC

Voltage Range：18-32 Volts DC

Power Output：75 Watts at 60 Celsius

Chassis：Series B

Operating Temperature：32-140 Fahrenheit (0-60 Celsius)

Enclosure：None

Description:

The 1756-PB75 is a Standard ControlLogix power supply. This power supply is a DC powered module, mainly used to deliver backplane power and enable module operation. This power supply is mounted on the left most side of a particular ControlLogix chassis.

The 1756-PB75 is compatible with most of ControlLogix chassis, particularly Series B and Series C 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 chassis. When terminating incoming power connection to this power supply, recommended wire size is 2.5 mm2 or 14 American Wire Gauge (AWG) solid or stranded copper wire with insulation rating of 90 °C (194 °F), or higher and maximum insulation thickness of 1.2 mm (3/64 in.). Tighten screw with Torque of 0.565 N-m (5 lb-in).This power supply has physical dimension of 14.0 (H) x 11.2 (W) x 14.5 cm (D) (5.51 x 4.41 x 5.71 in and weighs 0.95 kg (2.10 lb).

The 1756-PB75 is externally powered by a nominal supply voltage of 24VDC with applicable voltage range of 18-32VDC. It has an input power rating of 95W and inrush current rating of 30A. It delivers an output power of 75 W @ 0…+60 °C (+32…+140 °F) and current capacities of 1.5 A at 1.2VDC; 4A at 3.3VDC; 13 A at 5.1VDC and 2.8 A at 24VDC. This power supply also features hold up time of 35 ms @ 18V DC; 40 ms @ 24V DC and 40 ms @ 32V DC with isolation voltage of 250V (continuous), Reinforced Insulation Type, Power Input to Backplane Type tested @ 3500V DC for 60 s.
