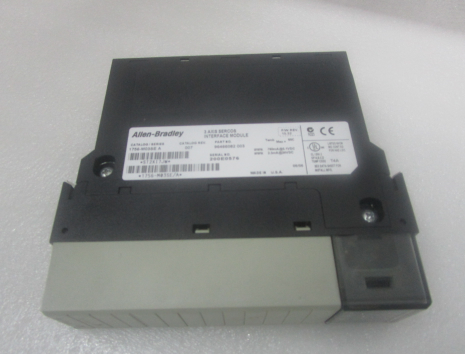

Allen-Bradley 1756-M03SE ControlLogix SERCOS interface module
Description Fo1756-M03SE
The 1756-M03SE is a ControlLogix SERCOS interface module. This module is capable of interfacing up to Three (3) drives with data rate of 4 Mbps and 8 Mbps. It is capable of implementing drive control modes such as Position, velocity, and torque control. This module is installed to any ControlLogix Chassis.
The Allen-Bradley 1756-M03SE is a SERCOS interface module that connects the controller to SERCOS interface drives. It has 3 axes available that is compatible with the Kinetix 2000 Servo drive. It uses a single, digital, fiber-optic link that eliminates as many as 18 digital wires per axis. It also lets you control digital drives by using high-speed, real-time serial communication. The drive control modes available with the 1756-M03SE module are position, velocity, and torque.
Before installing this module, it is important to install and ground the ControlLogix chassis it will be connected to first, as well as a ControlLogix power supply, and have the required fiber optic cables wires required for its installation. This is because the wires will be used to connect the drives and the module. The ControlLogix chassis compatible with this module are the 1756-A4, 1756-A7, 1756-A10, 1756-A13, and the 1756-A17. The module can be installed in any available slot of the chassis and has an open-type enclosure.
Allen Bradley's 1768-PB3 is a CompactLogix power supply. The 1768-PB3 is powered through the CompactLogix backplane. By using this backplane, the 1768-PB3 power supply is compatible with the 1768 and 1769 controllers, input/output modules, and power supply
Product specification
Model Number:1756-M03SE
Product name:1756-M03SE
Payment :Paypal\TT\Western Union\ Trade Assurance
MOQ :1PCS
Package :Carton Package
Shipping By DHL\UPS\Fedex\EMS\TNT\Aramex
Service :24 Hours Online Service
Lead time :5-7 Days
Condition :100% Original
Original factory:Allen-Bradley1756-M03SE In stock best price
Shipping term: TNT DHL FEDEX UPS |
Warranty: 12 Months |
Condition: Original & new |
