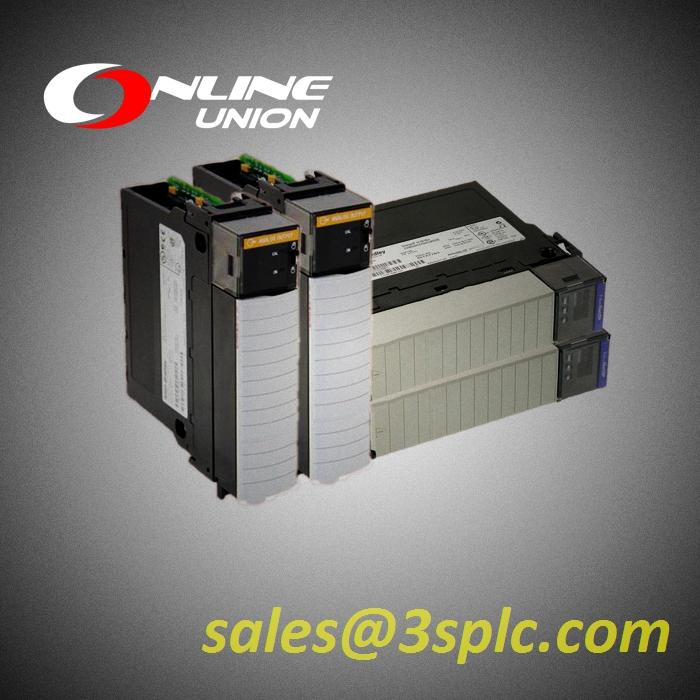

Allen Bradley 1756-IF8I ControlLogix 8 Point Analog Input Brand new

Allen Bradley 1756-IF8I ControlLogix 8 Point Analog Input

The 1756-IF8I is a ControlLogix analog input module. It has Eight (8) individually isolated current and Voltage input channels compatible for input signal range of ±10.5V, 0 -10.5V, 0-5V and 0-21 mA. It has a resolution of 24 bits and compatible for use with 2-Wire and 4-Wire transmitters.Each channel of the module is provided with overvoltage protection, short circuit detection, module Temperature range error, data alarming such as ramp rate, process alarms and other module diagnostic features.

Technical specifications for 1756-IF8I

Manufacturer：Rockwell Automation

Brand：Allen-Bradley

Part Number/Catalog No.：1756-IF8I

Series：ControlLogix

Channels：8 Isolated Channels

Module Type：Analog Input

I-O Ranges：0-10 Volts

Inputs：8-Points, Isolated , Any combination of Voltage or Current mode

Conversion Method：Sigma-Delta

Current Draw (5.1 Volts)：200 milliamps

Data format：IEEE 32-bit floating point

Current Draw (24 Volts)：150 or 400 milliamps

Input signal Range：-10…10V 0…10V 0…5V 0…20 mA

Input Resolution：24 bits; ±10.5V (1.49 ?V/count) 0…10.5V (1.49 ?V/count) 0…5.25V (1.49 ?V/count) 0…21 mA (2.99 nA/count)

Resolution：16-21 bits

Enclosure：Open

Backplane Current (5Volts)：200 mA

Backplane Current (24Volts)：Voltage/Non-sourcing Current mode: 150 mA Sourcing Current mode: 400 mA (In Sourcing Current mode, the channel provides loop power.)

Power Dissipation (Max)：Voltage mode: 4.6 W Non-sourcing Current mode: 5.1 W Sourcing Current mode: 7.3 W

Description:

The 24-Bit resolution of the Allen-Bradley 1756-IF8I provides an actual resolution of 1.49 ?V/count for +/- 10.5 VDC, 0 - 10.5VDC and 0-5.25 VDC for Voltage input while for Current input, the actual resolution for 0-21 mA signal is 2.99 nA/count. This resolution is not the standard resolution of any analog module as typical resolution of standard analog input are 13-16 Bit resolutions only.

The terminated Analog signals enables interface to actual process variables. This is necessary for the Programmable Logic Controller (PLC) to monitor or control a process by allowing integration to computer based control systems, such as a Human Machine Interface (HMI), Supervisory Control and Data Acquisition (SCADA) and Distributed Control Systems (DCS).

This module is installed to any ControlLogix chassis whether local, distributed or remote I/O installation. It requires 1756-TBCH and 1756-TBS6H Removable Terminal Blocks for signal wiring and appropriate wire size range for this module is 0.33 to 2.1 mm2 (22 to 14 AWG) solid or stranded shielded copper wire.

The Allen-Bradley 1756-IF8I is an Eight (8) Point General-Purpose Isolated Analog Current/Voltage Input Module. It requires a 36-pin Removable Terminal Block (RTB) before it can be wired with input signals. The 1756-IF8I provides higher-level accuracy through its 24-Bit conversion resolution and supports 2-wire or 40Wire transmitter configuration.
