Allen Bradley 1756-IF8H ControlLogix 8 Point A/I HART Module Brand new

Allen Bradley 1756-IF8H ControlLogix 8 Point A/I HART Module

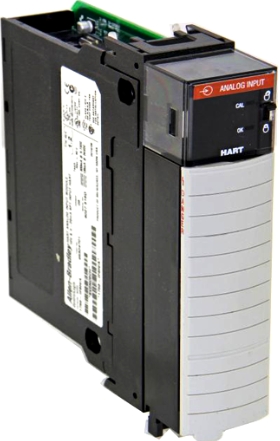

The 1756-IF8H is an analog input module that is part of Allen-Bradley’s Logix controller platform. This module features Eight (8) differential voltage or current input channels and One (1) Highway Addressable Remote Transducer (HART) modem. Each channel is configurable for 0-20 mA and 4-20 mA input signals while configurable voltage input signals are +/-10 VDC; 0-5 VDC; 1-5 VDC and 0-10 VDC. This module has a resolution of 16 - 21bits.It comes with an open-circuit detection time of 5 seconds and overvoltage protection of 30 VDC and 8 VDC for voltage and current signal configuration, respectively. This module is a single-width module, therefore, occupies a single slot of a 1756 chassis. It can be part of a local I/O or distributed I/O system. The 1756-IF8H has a HART scan time of 18...488 ms and 1 second if HART enabled while with all channels HART activated, the estimated scan time is 10 seconds. Module passthrough configuration and communication to HART communication and devices may significantly increase scan time. The 1756-IF8H uses successive approximation as input conversion method while output conversion method is via R-Ladder DAC, monotonicity with no missing codes.

Technical specifications for 1756-IF8H

Manufacturer：Rockwell Automation

Brand：Allen-Bradley

Part Number/Catalog No.：1756-IF8H

Manufacturer：Rockwell Automation

Series：ControlLogix

Brand：Allen-Bradley

Module Type：Hart Analog Input Module

Series：ControlLogix

Channels：8 Differential

Module Type：Analog Input Module with HART capability

Backplane Current (5.1 Volts DC)：300 milliamps

No. of Inputs：Eight (8) Differential input channels

Backplane Current (24 Volts)：70 milliamps

Input signal：Current: 0-20 mA; 4-20 mA Voltage: +/-10VDC, 0-5 VDC, 1-5 VDC and 0-10 VDC

Power Dissipation (Max)：3.21-4.01 Watts

Resolution：16 - 21 Bits

Thermal Dissipation：13.7 BTU per hour

Accuracy Voltage：0.1% of range Current: 0.3% of range

Resolution：16-21 bits

Data Format：Integer mode (left justified, 2 s complement) IEEE 32-bit floating point

Enclosure：Open

Input conversion method：Successive approximation

Output conversion method：R-Ladder DAC, monotonicity with no missing codes

Removable terminal block：1756-TBCH; 1756-TBS6H

Current Draw：300 mA @ 5.1 VDC and 135 mA @ 24 VDC.

Open circuit detection time：Positive full scale reading within 5 s

Overvoltage protection, max Voltage：30V DC Current: 8V DC

Our Services:

1、 All our products are new and original, and of good quality.

2、  Our prices are very competitive.

3、  We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.

4、  All inquiries will be valued and will reply in 24.

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.
