Allen Bradley 1756-IB16D ControlLogix 16 Point D/I Module Brand new

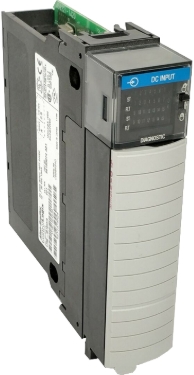

Allen Bradley 1756-IB16D ControlLogix 16 Point D/I Module

The 1756-IB16 is a ControlLogix Discrete input module which operate at a voltage category of 10 to 31.2 VDC with a nominal voltage of 24VDC. This module has Sixteen sinking (16) input channels in Two (2) groups. This module is directly installed to a 1756 local or remote chassis.This module supports single-rack, stand-alone controller configuration for smaller and less critical application. It may also be used in larger applications where a higher degree of criticality is involved such a Remote I/O system or a Distributed Control System (DCS).This module may be used as Discrete Input module of any ControlLogix configuration even, PlantPaX DCS platform of Allen-Bradley. There is virtually no limit with the number of installations of this module. The number of instances or installation depends on the Processor’s memory capability and the Physical chassis used or available slot.

Technical specifications for 1756-IB16D

Manufacturer：Rockwell Automation

Brand：Allen-Bradley

Part Number/Catalog No.：1756-IB16

Series：ControlLogix

Inputs：16

Module Type：Digital DC Input Module

No. of Inputs：Thirty-Two (32) Inputs

Input Voltage：12-24 Volts DC Sink

Operating Voltage Range：10-31.2 Volts DC

Module Keying：Electronic

Maximum Operating Current：10 milliamperes at 31.2 Volts DC

Input Delay Time：2 milliseconds plus selected filter time

Maximum Input Current, Off-State：1.5 milliamperes

Minimum Operating Current：2 milliamperes at 10 Volts DC

Input Delay Time, OFF to ON Hardware delay：290 µs nom/1 ms max + filter time

Input Delay Time, ON to OFF Hardware delay： 700 µs nom/2 ms max + filter time

Power Dissipation (Max)：5.1 W @ 60 °C (140 °F)

Backplane Current at 24 Volts：2 milliamperes

Backplane Current at 5.1 Volts：120 milliamperes

UPC：10612598171290

Thermal Dissipation：21.1 BTU/hr @ 60 °C (140 °F)

Removeable Terminal Block(s)：1756-TBCH 1756-TBS6H
