Allen Bradley 1756-IA16I ControlLogix Input Module Brand new

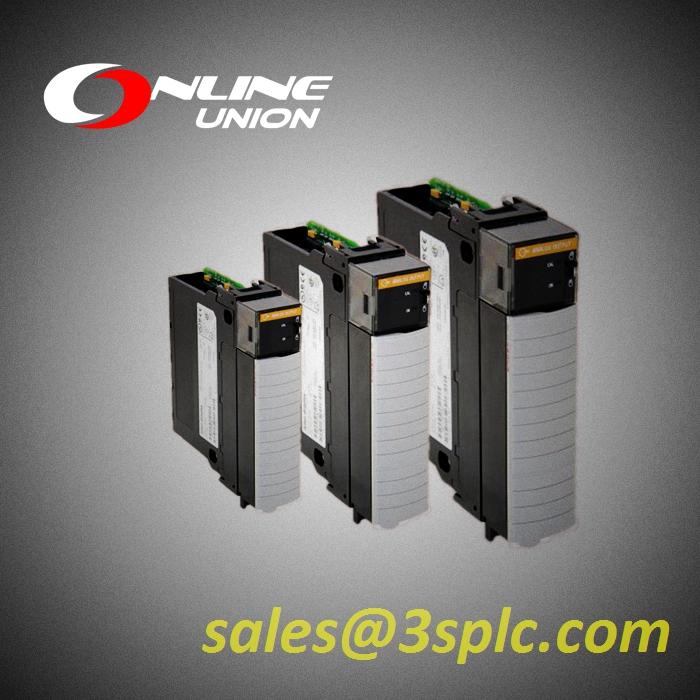

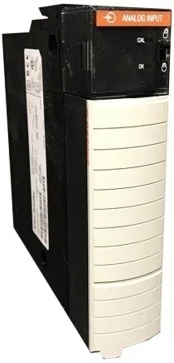

Allen Bradley 1756-IA16I ControlLogix Input Module

The 1756-IA16I is a ControlLogix Discrete input module which operate at a voltage category of 79 to 132V AC at a frequency of 47 to 63 Hz. This module has Sixteen (16) individually isolated channels. This module is directly installed to a 1756 local or remote chassis.The input voltage and voltage category of this module are both 120 Volts AC. The current draw at 24 Volts is 3 milliamps and for 5.1 Volts, it is 125 milliamps. The module’s operating voltage ranges from 79 to 132 Volts AC and 47 to 63 Hertz. Maximum power dissipation is 4.9 Watts at 60 Degrees Celsius and the thermal dissipation is 16.71 BTU per hour. Inrush current, at a maximum, is 250 milliamps and the total backplane power is 0.71 Watts. The screw to backplane input delay times are as follows: hardware delay is 10 milliseconds maximum plus user-selectable filter time (1 or 2 milliseconds), and hardware delay has a maximum time of 8 milliseconds and a user-selectable filter time ranging from 9 to 18 milliseconds. The maximum off-stage voltage is 20 Volts and 2.5 milliamps for the maximum current. For the on-state, the minimum is 5 milliamps at 79 Volts AC, ranging from 47 to 63 Hertz, while the maximum is 15 milliamps at 132 Volts AC, ranging as well from 47 to 63 Hertz.

Technical specifications for 1756-IA16I

Manufacturer：Rockwell Automation

Brand：Allen-Bradley

Part Number/Catalog No.：1756-IA16I

Series：ControlLogix

Inputs：16 Individually Isolated

Module Type：Digital AC Input Module

No. of Inputs：Sixteen (16) Individually Isolated

Input Voltage：120 Volts AC

Operating Voltage Range：79-132 Volts AC

Module Keying：Electronic

Input Delay Time：Programmable 9 or 18 milliseconds

Minimum Operating Current：5 milliamperes at 79 Volts AC, 47-63 Hertz

Maximum Operating Current：15 milliamperes at 132 Volts AC, 47-63 Hertz

Maximum Input Current, Off-State：2.5 milliamperes

Power Dissipation (Max)：4.9 Watts at 60 degrees Celsius

Backplane Current at 5 Volts：125 milliamperes

Backplane Current at 24 Volts：2 milliamperes

Removeable Terminal Block(s)：1756-TBCH, 1756-TBS6H

Description:

The Allen-Bradley 1756-IA16 is a ControlLogix I/O Module. This AC digital input module is an isolated type and has a display that shows the input and communication status and module health. The module’s input channels are individually isolated which are also individually rated at 125 Volts continuous input. This module directly connects to a ControlLogix chassis. Removable terminal block housings compatible with this module are the 1756-TBCH and the 1756-TBS6H.This module is mounted to a local or remote I/O ControlLogix chassis. Local ControlLogix chassis refers to an assembly where the ControlLogix processor is installed while remote I/O chassis refers a ControlLogix chassis that communicates to the local chassis through a communication adapter.Discrete input modules are used by Programable Logic Controller (PLC) such as the ControlLogix system to interface to the process or machine and receive each individual input’s binary state that is OFF and ON. This is necessary as Allen-Bradley controllers begin logic execution by examining the status of inputs including the signals wired to the 1767-IA16I.
