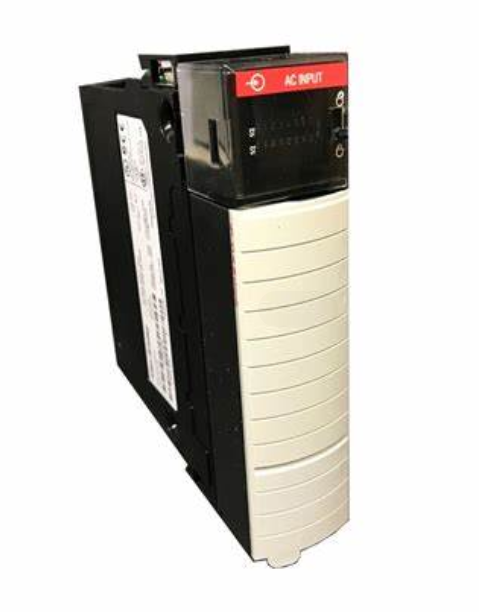

Allen-Bradley 1756-IA16I ControlLogix Discrete input module

Allen-Bradley 1756-IA16I ControlLogix Discrete input module

Description For 1756-IA16I

The 1756-IA16I is a ControlLogix Discrete input module which operate at a voltage category of 79 to 132V AC at a frequency of 47 to 63 Hz. This module has Sixteen (16) individually isolated channels. This module is directly installed to a 1756 local or remote chassis.

The input voltage and voltage category of this module are both 120 Volts AC. The current draw at 24 Volts is 3 milliamps and for 5.1 Volts, it is 125 milliamps. The module’s operating voltage ranges from 79 to 132 Volts AC and 47 to 63 Hertz. Maximum power dissipation is 4.9 Watts at 60 Degrees Celsius and the thermal dissipation is 16.71 BTU per hour. Inrush current, at a maximum, is 250 milliamps and the total backplane power is 0.71 Watts. The screw to backplane input delay times are as follows: hardware delay is 10 milliseconds maximum plus user-selectable filter time (1 or 2 milliseconds), and hardware delay has a maximum time of 8 milliseconds and a user-selectable filter time ranging from 9 to 18 milliseconds. The maximum off-stage voltage is 20 Volts and 2.5 milliamps for the maximum current. For the on-state, the minimum is 5 milliamps at 79 Volts AC, ranging from 47 to 63 Hertz, while the maximum is 15 milliamps at 132 Volts AC, ranging as well from 47 to 63 Hertz.

The Allen-Bradley 1756-IA16I is a Sixteen (16) Channel Discrete AC input module that features individually isolated channels. This module operates at a nominal input voltage of 120VAC with frequency of 50/60 Hz.

This module is mounted to a local or remote I/O ControlLogix chassis. Local ControlLogix chassis refers to an assembly where the ControlLogix processor is installed while remote I/O chassis refers a ControlLogix chassis that communicates to the local chassis through a communication adapter.

Product specification

Model Number: 1756-IA16I

Lead time :STOCK

Date code :NEW or used

Packaging :Standard Exportation Packing

Shipping by: DHL\UPS\Fedex\EMS\HK Post

module number :1756-IA16I

Original factory:Allen-Bradley1756-IA16I In stock best price
