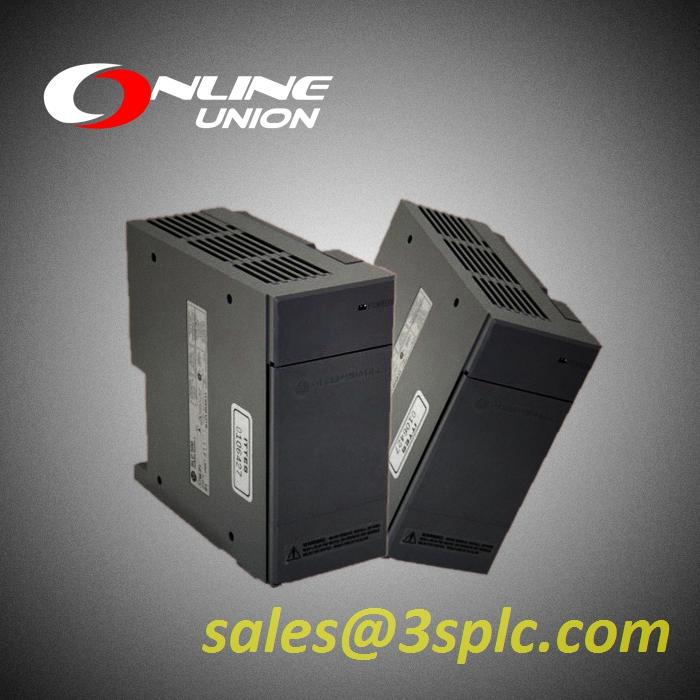

Allen Bradley 1756-HSC ControlLogix High Speed Counter Module Brand new

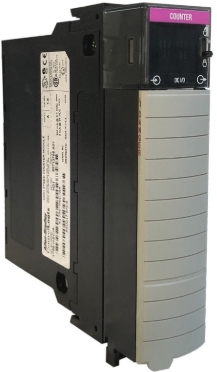

Allen Bradley 1756-HSC ControlLogix High Speed Counter Module

The 1756-HSC is a High-Speed Counter module is used for interfacing instruments such as encoders, totalizers and other instruments for motion and position control applications and metering systems. It has Two (2) Counters with each Counter capable of Three (3) input in A, B and Z for Gate / Reset signals. This module is installed to a ControlLogix chassis only.This module is capable of being used with encoders and pulse generating devices such as metering devices for Flow Totalization and magnetic pick-up sensors to detect the rotation speed of an equipment.This module has built in Counter and Frequency modes. The selected mode determines the manner on how the pulse will be counted and stored including output behavior.This module support pulse signals with frequencies of 1 MHz in counter modes (A input) 500 KHz in rate measurement mode (A input) 250 KHz in encoder mode (A/B inputs, X1 or X4) 50Hz with debounce filter enabled. The Count range of this module can reach up to a maximum value of 0 - 16,777,214 which can be reset via an external signal or a memory bit which may be triggered manually or automatically.

Technical specifications for 1756-HSC

Manufacturer：Rockwell Automation

Brand：Allen-Bradley

Part Number/Catalog No.：1756-HSC

Series：ControlLogix

Inputs：3 per Counter

Module Type：High Speed Counter Module

Outputs：4-Point

Signal Frequencies：1 MHz in counter modes (A input); 500 KHz in rate measurement mode (A input); 250 KHz in encoder mode (A/B inputs, X1 or X4); 50Hz with debounce filter enabled

Operation Modes：Counter, Rate Measurement, Encoder, Debounce Filter

Backplane Current (5Volts)：300 milliamps

Backplane Current (24 Volts)：3 milliamps

Power Dissipation (Max)：5.6 Watts at 60 Celsius

Count Range：0-16, 214, 777

Removeable Terminal Blocks：1756-TBCH, 1756-TBS6H

Location：Chassis (Any Slot)

Slot Width：1
