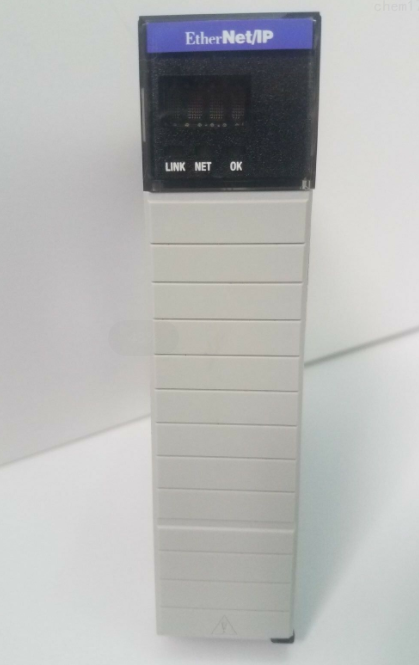

The Allen-Bradley 1756-EN2F is a ControlLogix communication module.
Description For 1756-EN2F
The Allen-Bradley 1756-EN2F is a ControlLogix communication module. This module is used to enable Remote I/O connection, capable of acting as a communication adapter and scanner; permits data exchange between controller and visualization systems such as Human Machine Interface (HMI) or Supervisory Control and Data Acquisition (SCADA) and bridge ethernet networks to link messages from different ethernet nodes.
The 1756-EN2F features a single Ethernet port that uses fiber connection. Physical connection can be established using a Multimode fiber cable with LC connector. The module’s fiber port supports 10/100 Mbps transmission speed.
The 1756-EN2F is a single slow width module that is compatible for installation to any slot of 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17 ControlLogix chassis. It is also compatible for use with standard power supplies such as 1756-PA72, 1756-PA75, 1756-PB72, 1756-PB75, 1756-PC75, and 1756-PH75. It may also be installed with redundant power supplies such as 1756-PA75R, 1756-PB75R, and 1756-PSCA2.
The 1756-EN2F supports up to 128 TCP connections, 256 CIP connections and 128 + 128 CIP Unconnected Messages TCP (backplane + Ethernet). Additionally, it supports Socket services and SNMP. This module is also capable of duplicate IP detection.
The 1756-EN2F has a current draw of 1.2 Ampere of 5.1VDC and 3 mA at 24VDC with power dissipation of 6.2 Watts and Thermal dissipation 21.28 BTU/hr.
Allen Bradley's 1768-PB3 is a CompactLogix power supply. The 1768-PB3 is powered through the CompactLogix backplane. By using this backplane, the 1768-PB3 power supply is compatible with the 1768 and 1769 controllers, input/output modules, and power supply
Product specification
Model Number ：1756-EN2F
Lead time： STOCK
Date code: NEW or used
Packaging ：Standard Exportation Packing
Shipping by: DHL\UPS\Fedex\EMS\HK Post
module number： 1756-EN2F
Original factory:Allen-Bradley 1756-EN2F In stock best price
| Shipping term: TNT DHL FEDEX UPS |
| Warranty: 12 Months |
| Condition: Original & new |
