Allen Bradley 1756-CN2R ControlLogix Communication Module Brand new

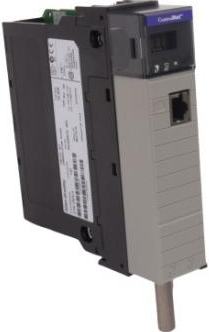

Allen Bradley 1756-CN2R ControlLogix Communication Module

The Allen-Bradley 1756-CN2R is a ControlNet communication module that is part of the ControlLogix product family. This module has redundant ControlNet ports that supports implementation of linear or redundant ControlNet network topology. Each port is capable of up to 5 mbps transmission speed, up to 128 logix communication connections, 131 connections and up to 99 nodes. This module is installed to a local or remotely located 1756 ControlLogix chassis and draws backplane current amounting to 1300 mA @ 5VDC and 3 mA @ 24VDC.This module features Two (2) ControlNet BNC port that supports 5 Mbps transmission speed and One (1) USB communication port that supports 12Mbps data rate. This ControlNet module supports redundant ControlNet topology. Up to 128 Logix connections can be established with this module.

Technical specifications for 1756-CN2R

Manufacturer：Rockwell Automation

Brand：Allen-Bradley

Part Number/Catalog No.：1756-CN2R

Manufacturer：Rockwell Automation

Manufacturer：Rockwell Automation

Series：ControlLogix

Part Number/Catalog No.

Brand：Allen-Bradley

Module Type：Bridge Module

1756-CN2R：Series

Product Description：ControlNet communication module

Maximum Nodes：99

ControlLogix：Module Type

Part Number：1756-CN2R

Maximum Connections：131

ControlNet communication module：Location

ControlNet Communication Rate：5 megabits-second

Chassis：Backplane Current (5.1 Volts DC)

Communication Port：Two (2) ControlNet; One (1) USB

Configuration：Redundant

1300 mA：Backplane Current (24 Volts DC)

ControlNet Data Transfer speed：5 Mbps

Input Current：1300 milliamps at 5.1 Volts DC, 3 milliamps at 24 Volts DC

3 mA：Isolation Voltage

USB Data Transfer rate：12 Mbps

Thermal Dissipation：22.9 BTU per Hour

30 Volts Continuous：Power Dissipation (Max)

Mounting：Any 1756 Chassis

Power Dissipation：6.7 Watts

6.7 Watts：Enclosure

Compatible Power Supply (Standard)：1756-PA72/C, 1756-PA75/B, 1756-PB72/C, 1756-PB75/B, 1756-PC75/B, 1756-PH75/B

Slot width：1

Open Type：Thermal Dissipation

Compatible Power Supply (Redundant)：1756-PA75R, 1756-PB75R, 1756-PSCA2

Weight：0.64 pounds (0.293 kilograms)

22.9 BTU/hr：Communication Cable

Compatible Chassis：1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17

1786-RG6 quad shield RG6 coaxial cable：Dimensions

Backplane current：1.3 A at 5.1 VDC; 3 mA at 24VDC

5.51 x 4.41 x 5.71 inches：Operating Temperature

Power Dissipation：6.7 W

32-140 Fahrenheit (0-60 Celsius)：Chassis

Thermal dissipation：21.28 BTU/hr

1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17：Power supply, standard

No. of Logix connections：128

1756-PA72/C, 1756-PA75/B, 1756-PB72/C, 1756-PB75/B, 1756-PC75/B, 1756-PH75/B：Power supply, redundant

Max. no. of connections：131

1756-PA75R, 1756-PB75R, 1756-PSCA2

Maximum number of nodes：99
