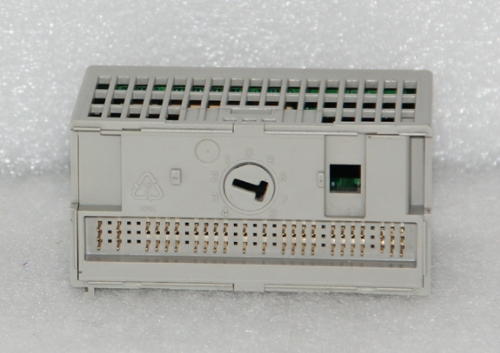

Allen-Bradley 1746-NIO4I is a SLC 500 Analog Combination Module.
Description For 1746-NIO4I
The Allen-Bradley 1746-NIO4I is a SLC 500 Analog Combination Module. This Analog Combination Module has Two (2) Voltage or Current Inputs and Two (2) Current Output channels. This module is used with SLC 500 fixed or modular style hardware.
The 1746-NIO4I also has a voltage input rating of -10 to 10 Volts DC and a 760 KOhms voltage impedance at a resolution of 305 microVolts per Least Significant Bit (LSB). It also has an accuracy of +/- 0.504%, and a drift accuracy and error of +/- 63 ppm/degree Celsius and +/- 57 ppm/degree Celsius. The 1746-NIO4I offers overvoltage at either 220 Volts AC (RMS) or 220 Volts DC (continuous). The current outputs have a load range of 0 to 500mA with its normal range at 0-20 mA and a 5% over-range capability at 2.56348 microA per LSB signal resolution. The 1746-NIO4I also has an overall accuracy of ±0.541% with a drift accuracy of ±70 ppm/degree Celsius and a gain and offset error of ±0.516% and +/-12 LSB. The entire module has a 500 Volt-tested isolation between fields in the wiring-to-backplane isolation and it has an aggregate update time of 512 microSeconds for all channels. The 1746-NIO4I’s operational temperature ranges between 0 and 60 degrees Celsius at a 5 to 95% non-condensing relative humidity.
Allen Bradley's 1768-PB3 is a CompactLogix power supply. The 1768-PB3 is powered through the CompactLogix backplane. By using this backplane, the 1768-PB3 power supply is compatible with the 1768 and 1769 controllers, input/output modules, and power supply
Product specification
Model Number: 1746-NIO4I
Condition: New
Delivery time: 1-5 days after payment receieved
Shipping: DHL/UPS/TNT/FEDEX/ARAMEX
Payment: PAYPAL, T/T, WESTERN UNION
Model number :1746-NIO4I
Product Name: plc type plc programming 1746-NIO4I
Original factory:Allen-Bradley1746-NIO4I In stock best price
Shipping term: TNT DHL FEDEX UPS |
Warranty: 12 Months |
Condition: Original & new |
