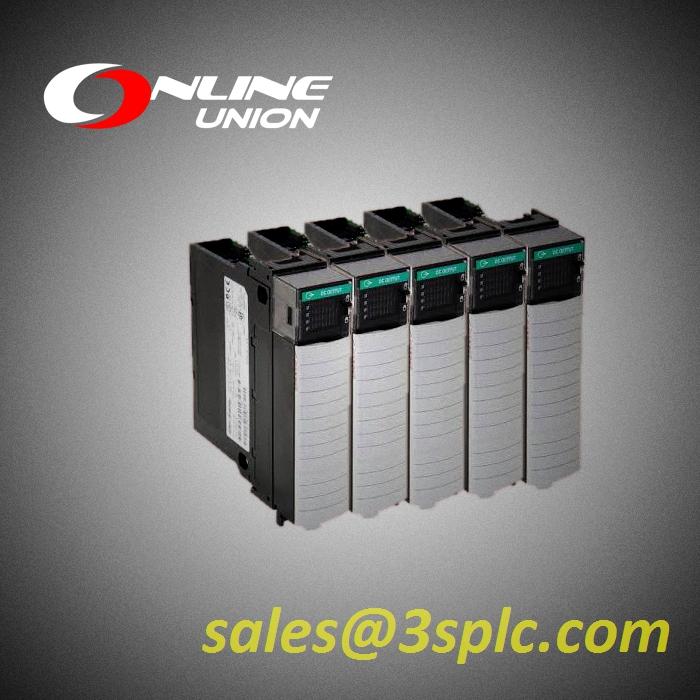

Allen-Bradley 1756-OV16E ControlLogix Digital DC Output Module

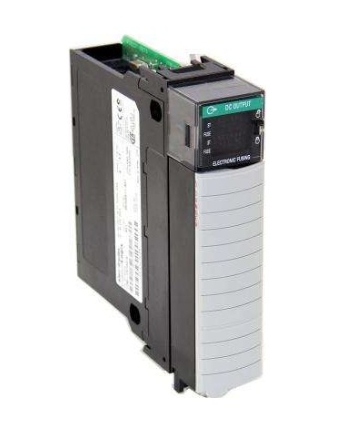

The 1756-OV16E ControlLogix Digital DC Output Module by Allen-Bradley is an output module in the ControlLogix Digital DC output module series with 16 sinking and electronically-fused outputs located in the chassis slot of the 1756 ControlLogix device. It has a pilot duty rating of 1A (DC-13/SR) and an operational voltage rating of 10-30V DC. The 1756-OV16E has a nominal signal delay time of 75μs for OFF to ON state and 360μs for ON to OFF state and it has 1ms maximum delay time for both OFF to ON and ON to OFF. It has backplane ratings of 2mA at 5.1V and 210mA at 24V and a total power of 1.12W. The maximum power dissipation across the 1756-OV16E’s circuits is 6.72W and the maximum leakage current on each point is 1mAin the OFF state. It has a maximum voltage loss of 700mV DC at 1A.
Allen Bradley's 1768-PB3 is a CompactLogix power supply. The 1768-PB3 is powered through the CompactLogix backplane. By using this backplane, the 1768-PB3 power supply is compatible with the 1768 and 1769 controllers, input/output modules, and power supply
Product specification
Brand: Allen Bradley
Warranty :180 days
Origin: USA
Lead time: STOCK
Date code: NEW or used
Packaging :Standard Exportation Packing
Shipping by :DHL\UPS\Fedex\EMS\HK Post
Module number : 1756-OV16E
Rockwell: Allen- Bradley
1) ControlLogix 1756 series controller
2) CompactLogix 1769 series controller
3) SLC 500 1747 1746 Series Controller
4) PLC-5 1771 1785 series controller
5) ProSoft MVI69/PS69/MVI56/MV194/MV171/MV146/3150
6) ICS TRIPLEX trusted system
Our Services:
1、 All our products are new and original, and of good quality.
2、 Our prices are very competitive.
3、 We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.
4、 All inquiries will be valued and will reply in 24 hours.
5、 Fast shipping, and good after-sale service
6、 We will ship the items within 1-3 working days after the payment is received.
7、 Good package to protect the products.
